After Action Module

After Action Module

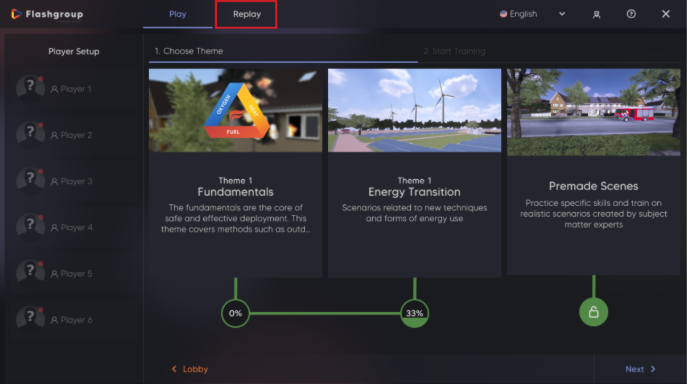

At the top of the main menu screen there is a button called “Replay”, this is our after action module. In this module you can rewatch scenarios played previously and saved. When finishing a live scenario, the operator will be asked whether they wish to save the replay or not. If the operator decided to name the replaand save it, they can then rewatch the scenario from every angle that was possible in replay.

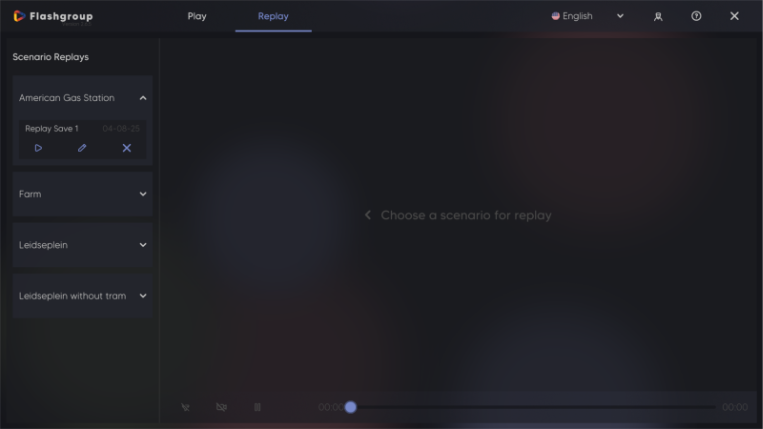

When opening the replay screen, the operator will be met with a bar on the left listing all saved replays and their respective locations they were played in. Here you can play, rename and delete the replays.

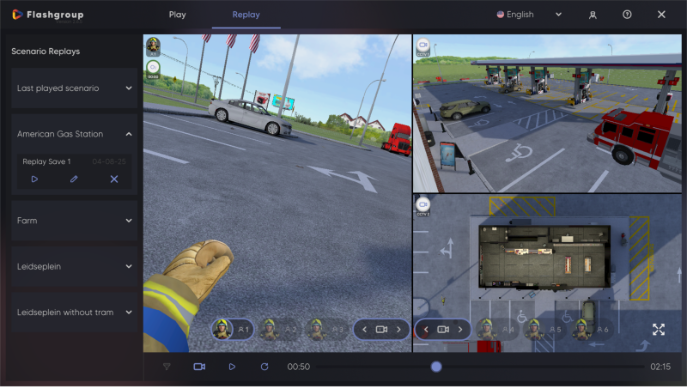

When a replay is opened, the saved scenario can be reviewed in full detail, with access to all available player points of view and CCTV cameras placed around the map, just like in the live scenario. Each camera can be toggled on or off, allowing you to focus only on the perspectives thaare most relevant to your review.



At the bottom of the screen, the lower control bacontains a video player–style timeline for navigating through the scenario. The filter button lets you choose which event icons appear on the timeline, such as doors being opened, so you can focus on specific actions. The HUD hide button removes the on-screen camera toggle buttons, giving you a clear, unobstructed view. Playback can be paused or resumed using the pause/play button, and the restart button instantly returns the replay to the beginning.



Custom Tags will be visible in the timeline and will look like this:

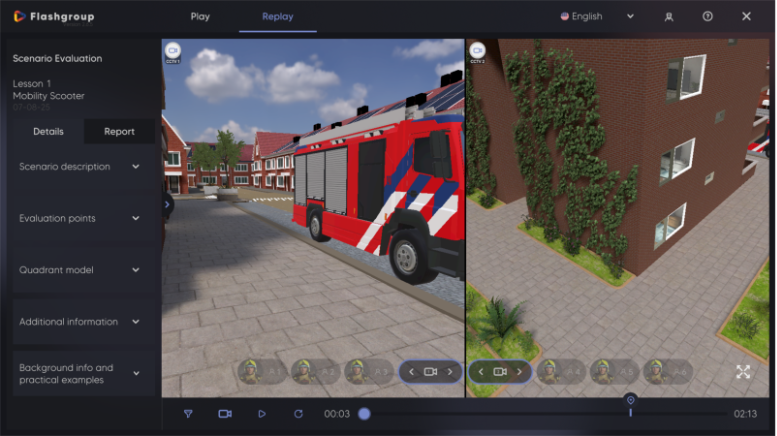

In the bottom-right corner of the camera view, a full screen button is available to expand the selected camera feed for a more immersive review. If the replay is from a lesson scenario, an information panel will appear on the left side of the screen, showing details about the lesson descriptionadditional informationand evaluation points grader.



For the best results, use filters to highlight only the events you wish to analyze, and alternate between player POVs and CCTV views to gain both an individuaand an overall understanding of the situation. Hiding the HUD caalso be useful when presenting the replay to a group, ensuring the scene remains cleaand uncluttered.
